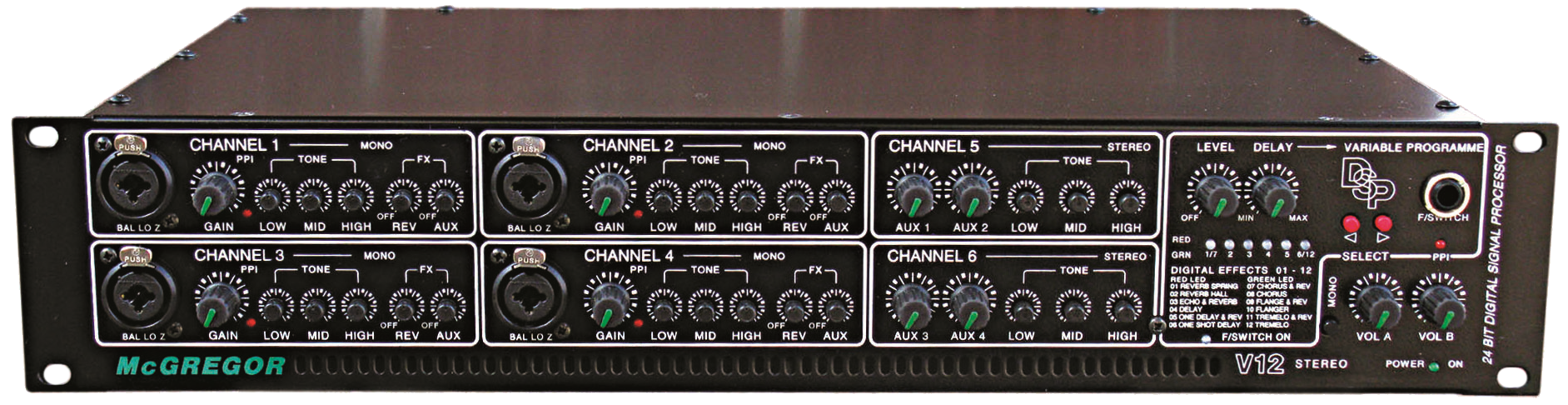

V12 Series - Mosfet Mixer Amplifiers

All four microphone inputs are balanced or unbalanced on combi XLR/Jack sockets
Microphone channels feature gain/volume, bass, middle and treble controls with PPI LED indicators
Channels 1 to 4 feature AUX and digital effects sends on rotary controls
Channels 5 and 6 provide four stereo line inputs (two per channel) with separate volume, bass, middle and treble controls
Separate overall master volume controls for channel A and B with stereo / mono push switch
Twelve variable digital delay effects (selected by up/down keys) with dual-colour LED programme indicators
Overall mix level and variable delay controls for all effects
Effects include spring line reverb, hall reverb, rev & delay, delay, chorus and flange (with and without reverb)
Effects muting is footswitch controlled with blue LED status indicator
All four stereo line inputs are on rear mounted twin phono (RCA) sockets
AUX send and stereo return are on rear mounted 6.35mm jack sockets
Speaker outputs on rear mounted speakon sockets
Active clip limiter (internally configurable off to max)
Fan cooled with low noise proportional speed fan
Soft start, thermal trip and mains inrush limiter

Power Output (RMS) @ 1kHz
V12 1300 - 650 + 650 watts RMS into 4 ohms
V12 1000 - 500 + 500 watts RMS into 4 ohms
70% into 8 ohms
Microphone inputs: Balanced or unbalanced 3k3 - 5mV
Line level inputs: Unbalanced >22k - 200mV
Slave line output: Unbalanced <10k - 775mV (0dB)
Headroom: +22dB (PPI’s active @ +19dB)
Bass EQ: +/- 15dB @ 50Hz - Shelved
Mid EQ: +/- 8dB @ 2k5Hz
Treble EQ: +/- 15dB @ 12kHz - Shelved
Frequency response: 20Hz – 25kHz +/-0.5dB
D/C Protection: +/-32V
Signal to noise ratio: Better than 100dB
Clip Limiter: Active clip limiting (Internal variable threshold)
T.H.D. @ 1kHz rated power – <0.02%
Damping Factor: Better than 400
Slew Rate: 40V / uS
Mains Input Power: 230V +/-10% 50-60Hz
